Project Destiny: Outbreak Prime

It has become a yearly "tradition" to have a new custom commission from probably my biggest fan, "Mr. Japan". For the past two years I have had the same costumer come to me for that special Christmas gift, this year was no different, and what did they want this year? The incredibly complicated to get exotic pulse rifle, the Outbreak Prime.

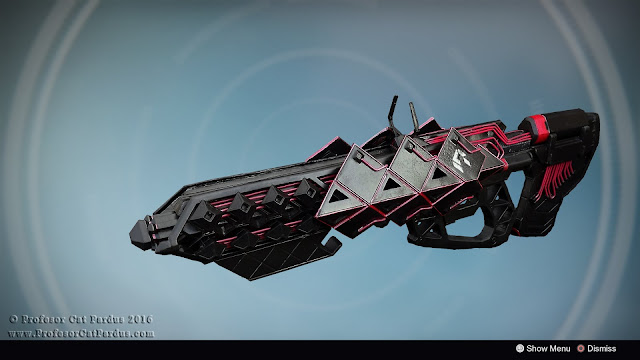

At the time of the request the first Destiny group had literally just got their hands on it they had published the videos and pics only two days before. Bungie hadn't even released it publicly on Bungie.com, so trying to get my hand on refrence images was not easy. I started out going of of the concept art and the YouTube videos to begin with. Once I had collected what images I could get my hands on I ran over to destinystlgenerator to see if I could get lucky and get the game model as a starting point. Alas it was so "new" with the Rise of Iron expansion that the guy that runs it hadn't gotten to it yet. I was in a bit of a pinch because the commission was for a hard resin model and while I could scratch build it I wanted to have an accurate to the game model to mold and cast. At this point all I had to go on was the few pictures that I had scrapped together and that wasn't enough reference to get it as accurate as I could. So, as a "here's hoping" I sent an email to the guy that runs the DestinySTLgenerator hoping I might be able to get in contact with him. The first email I didn't get a response, I let it sit for about a week, I understand this is a side thing for him and he does it for no profit for the love of it so I didn't want to sound like the pushy "hey do this for me because I'm special" I'm sure he has tons of requests all the time for X, Y, and Z models. I was loosing time on this build, I only had about a month and a half to make a master, get it perfect, mold it, cast it, assemble, and finish it. Then I had to send it out in enough time that it would make it to my customer in Japan by Christmas. Doable, but I had no time to waste, I sent another email offering to pay him if he could get the model for me, I was hoping adding a little incentive to the deal might peak his interest in helping me out. About 4 days later as I was about to head to bed I got a very nice surprise in my inbox. An email from the guy saying very nicely that he had uploaded it for me and that he does this for the love of the game not for profit so don't worry about paying him. I was so excited that he had heard my request that I ran over to the site grabbed the model and promptly donated to his site, his site has helped me on so many occasions that it was the least I could do.

With the base digital model acquired, the pieces loaded up, and my reference photos I started working on the digital model. There was a lot of work to be done given how intricate the model it's self is then on top of that converting digital "no physics" model into a real world object that had supports and would fit together. It took a bit to figure out how to make this thing work in the real world. After about a week, I could finally start 3D printing some of the parts, I hadn't finished the entire model but I needed to get things started or the deadline wasn't going to be met. I got the Jarvises Printing away while I finished up the digital work. Here's some pictures of  finished digital model.

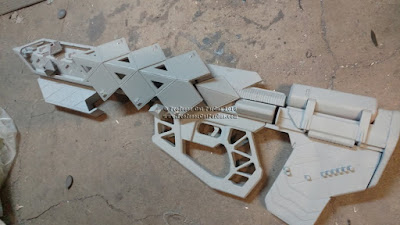

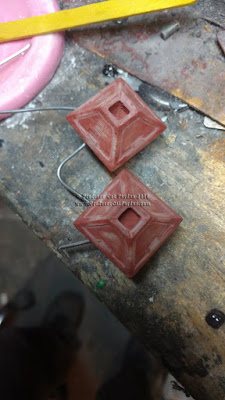

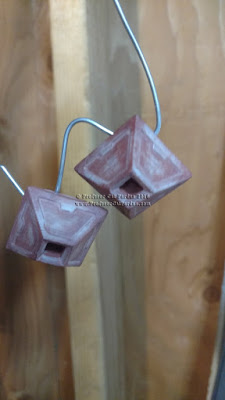

While I continued printing out the pieces I was missing I started getting to work on the assembly and finishing of the pieces I did have. As always, the smoothing and finishing took forever, sanding is probably my least favorite part of prop making, it's just so tedious. Here are a few pictures of the pieces in the finishing process.

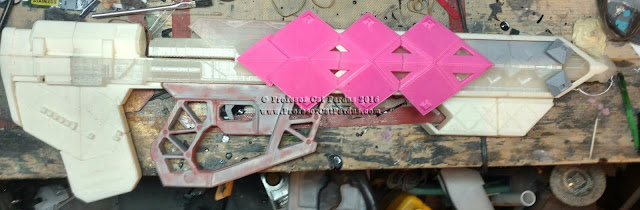

Once I had gotten some of the main pieces finished I had to start making sure that it was all going to fit together nicely. If it didn't fit well now than the pieces cast from a mold would need work to make fit and I have learned that this is probably one of the worst outcomes you can have from molding something you intend to cast. All the money that goes into the finishing and molding of a piece just to have to do a ton of work post casting, not fun. Here are a few pictures of the "finished" master.

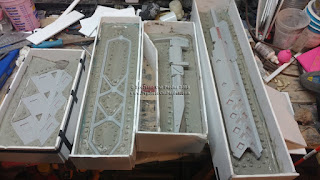

Then the molding process which I have gotten much faster at over these years but still takes more time than I like to spend on it.

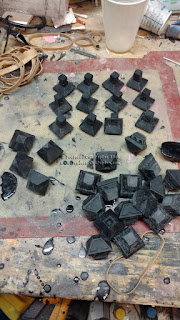

Once I got the mold finished and cleaned up I started casting immediately given I was down to about a week to meet the deadline of getting in a box and sent out to Japan. Luckily taking that little extra time on the master paid off in the cast parts.

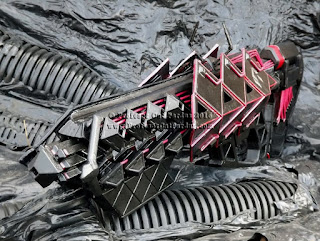

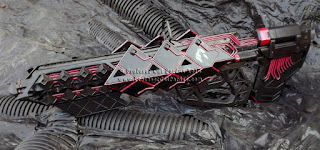

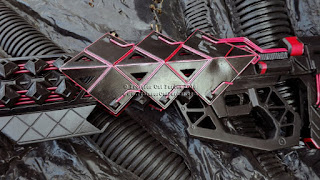

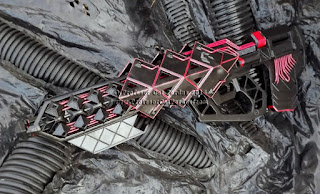

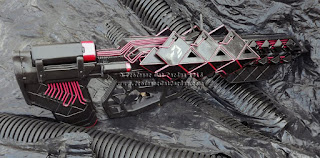

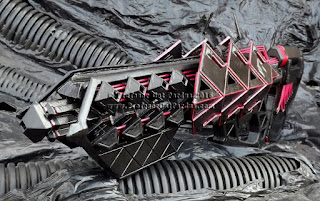

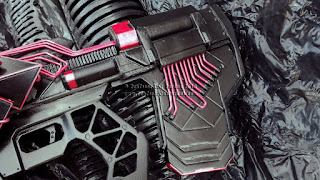

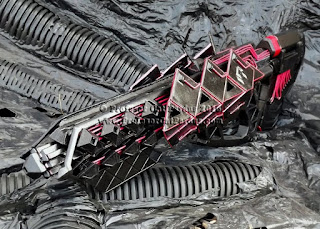

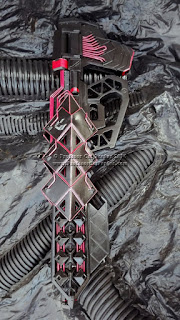

At this point I had literally about 48 hours to finish it and get it packed up. Not to mention that I had to lay nearly 50ft of actual red wire to finish the look of the original. Now I had thought no problem everything fits a little bit of clean up and it would be a cake walk to glue everything together. I was very wrong, I had made a fatal mistake that was causing all of the glue to pop at the slightest tweak. I would glue something and 2-5 minutes later it would pop off. After a lot of cursing and struggling to get things to work, my lovely girl came out into the shop sat down and after listening to me vent about how nothing was working, promptly told me I was being dumb about this and that I needed to think it out rather than fight it over and over again, this was the point that I realized my horrible mistake. I made a fatal mistake in my assembly, in an effort to save myself some time I had thought it would be a good idea, at the time, to pre-paint my pieces before assembling them. Horrible idea, while the logistics of having things painted before assembling seemed like a time saver in truth it easily tripled my assembly time. The main problem being that since the pieces were painted the glue to assemble the parts wasn't sticking to the model rather the paint that was coating the model, so I would glue something think it was nicely attached and not even 5 minutes later the bond would pop pulling up the paint it had been attached to. After realizing this fact I spent all night, the night before I had to send it, fixing this mistake. It took me till 2 in the morning to get it assembled and fix the paint issues but I finally managed to get it finished. After all the issues I had with it I have to say I was very happy how it turned out. The next morning before I had to pack it up and send it out I managed to get some great shots of it. Here is the final finished exotic pulse rifle, the Outbreak Prime
